Press Plate Manufacturing Process Solutions
Press Plate Manufacturing Process solutions from ZORI deliver industry-specific end-to-end lamination support for HPL, PCB and CCL production. By optimizing press performance, stack layup and process parameters, they eliminate core production pain points from surface defects and warping to delamination and uneven heat distribution.
Why Lamination Problems Occur
Most lamination quality issues trace back to inconsistent conditions across the press cycle, rather than raw material flaws alone. Core common problems include:

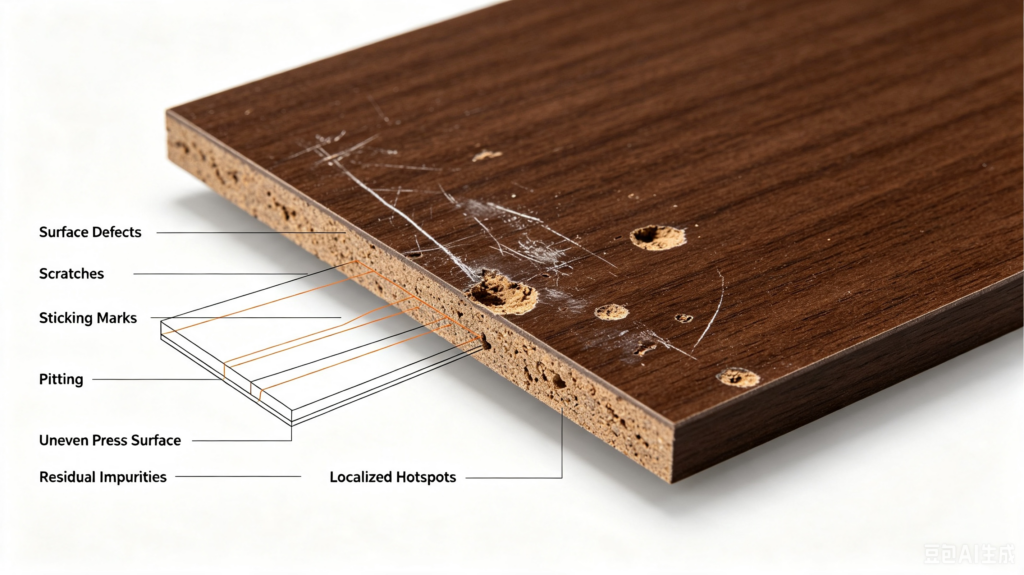

Surface Defects
Uneven press surface wear, residual platen impurities or localized hotspots leave scratches, sticking marks or pitting on finished panels. These flaws directly downgrade product grade and raise scrap rates.

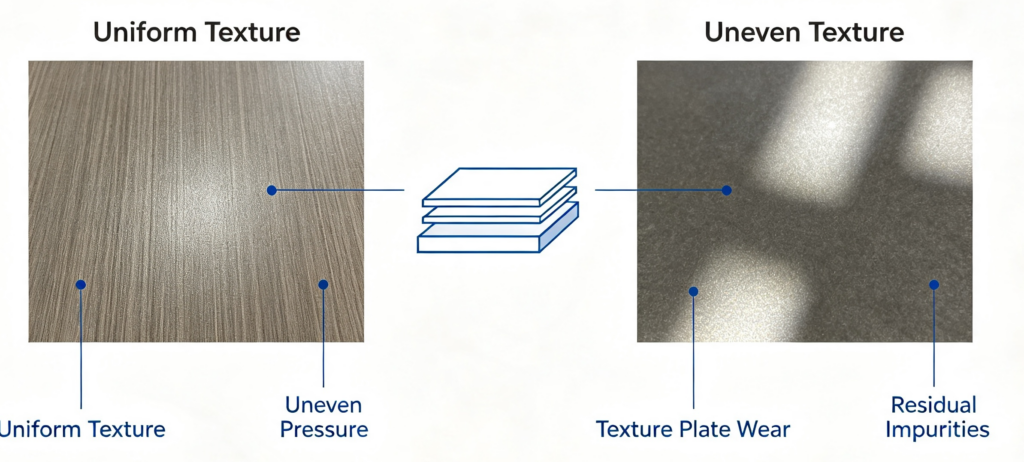

Uneven Texture
Worn plate surfaces, unbalanced pressure distribution or misaligned stack layers cause incomplete or distorted texture transfer. This creates visible grain differences across single panels or between production batches.

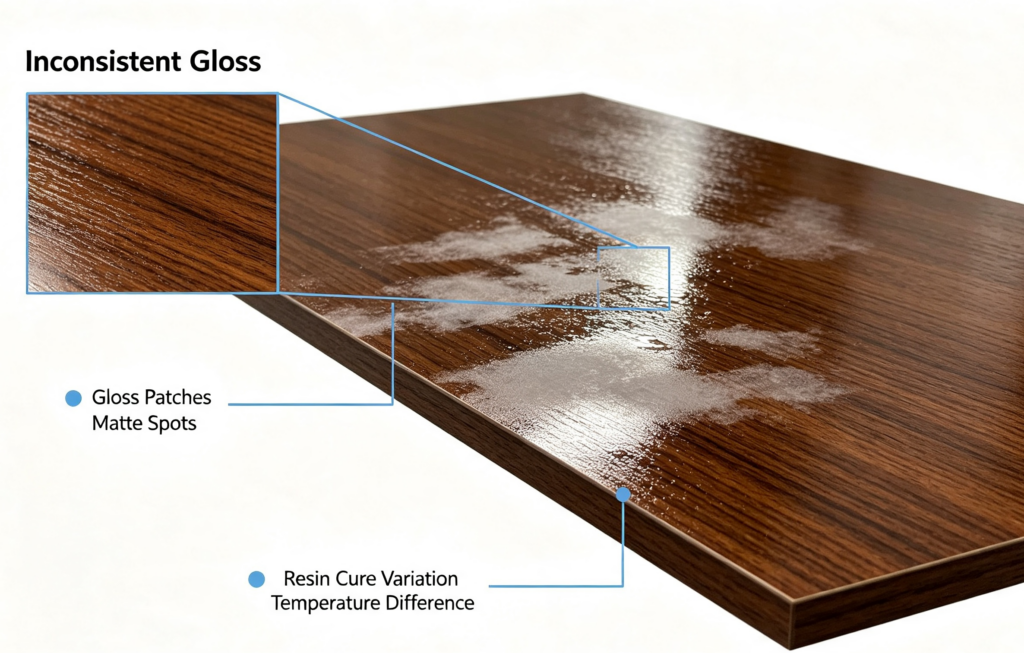

Inconsistent Gloss
Temperature variations across the press working surface lead to uneven curing of surface resins. This results in patchy gloss levels on finished panels, even within the same production run.
Cycle Time Limitations
Poor thermal conductivity and unstable pressure performance force manufacturers to extend press cycles to avoid quality defects. This directly caps overall production output and raises per-unit costs.
Process Optimization Areas
We focus on four core optimization dimensions to fix root causes, not just surface-level symptoms:
Heat Transfer
We refine the internal thermal structure of press plates to eliminate temperature gaps across the entire working surface. Uniform heat delivery removes hotspots that cause warping, blistering and uneven resin curing.
Pressure Distribution
We calibrate plate flatness and design matched stack support structures to spread pressing force evenly across every layer. This balanced load eliminates localized stress and ensures consistent pressing quality for all panels in a batch.
Surface Replication
We use precision machining and surface treatment processes to reproduce design details with micron-level accuracy. This guarantees crisp, uniform texture and finish transfer across every panel, even for large-volume runs.
Production Efficiency
We match optimized plate performance with tailored process parameters to shorten press cycles without sacrificing quality. This allows manufacturers to boost daily output while maintaining stable product standards.
ZORI PRESS PLATE solutions
Industry Solutions
We build dedicated solution packages for each core application sector to match unique industry requirements:
HPL Solutions
Custom press plate sets and process tuning for decorative high-pressure laminate production, prioritizing texture accuracy and flawless surface finish.
PCB Solutions
High-precision lamination systems for multi-layer printed circuit board manufacturing, designed for thin substrate handling and ultra-tight dimensional tolerance.
CCL Solutions
Thermally stable heavy-duty press solutions for copper clad laminate production, ensuring uniform resin curing and consistent electrical performance across finished boards.
35%
Fewer surface defects
40%
Lower warping & delamination
15%
Faster production cycles
Recommended Press Plate Solutions
To match different production needs, we offer three core matched press plate product sets:
High-Precision Mirror Press Plates
Ultra-flat polished surface plates are ideal for high-gloss HPL and high-grade CCL production, delivering a defect-free, uniform surface finish for every panel…..
Custom Embossed Press Plates
Tailored textured plates for decorative HPL and specialty panel lines, with precision-engraved patterns for consistent, accurate texture replication across full production batches.
Carrier + Separator Plates
Heavy-duty load-bearing and separation plates for multi-daylight press lines, stabilizing stacked layers, protecting core press platens and extending overall equipment service life.
Success Results
Our optimized process solutions deliver measurable, tangible improvements for manufacturing lines:
Cut surface defect rates by up to 35% for more consistent batch quality and lower scrap costs
Reduce panel warping, delamination and blistering issues by over 40%
Shorten average press cycle time by 10-15% to lift overall production capacity
Extend core press plate service life by 25% to reduce long-term maintenance and replacement costs
