Press Plates for Copper Clad Laminate Manufacturing
Press Plate for Copper Clad Laminate Manufacturing production requires top-tier electrical stability to deliver uniform circuit performance and reliable finished products. ZORI full lamination systems maintain stable production environments and balanced overall quality, helping manufacturers attain outstanding electrical consistency and consistent output of premium CCL materials.
CCL Types
The Copper Clad Laminate (CCL) industry supplies high-performance laminate materials for advanced electronic manufacturing. Manufacturers continuously improve production efficiency, material consistency, and thermal performance to meet the growing demand for high-frequency communication, automotive electronics, AI computing, and industrial applications.
FR4 CCL
FR4 remains the most widely produced laminate category within the global CCL industry due to its balanced electrical, mechanical, and thermal properties. It continues to serve as the standard material for a broad range of electronic applications, supporting high-volume manufacturing across multiple industries.
Manufacturers focus on improving production efficiency while maintaining consistent laminate quality and stable process control.
1
Typical Production Characteristics
- Large-scale continuous manufacturing
- Stable electrical insulation performance
- Consistent laminate thickness
- Reliable dimensional stability
- Excellent production efficiency
- Cost-effective mass production
2

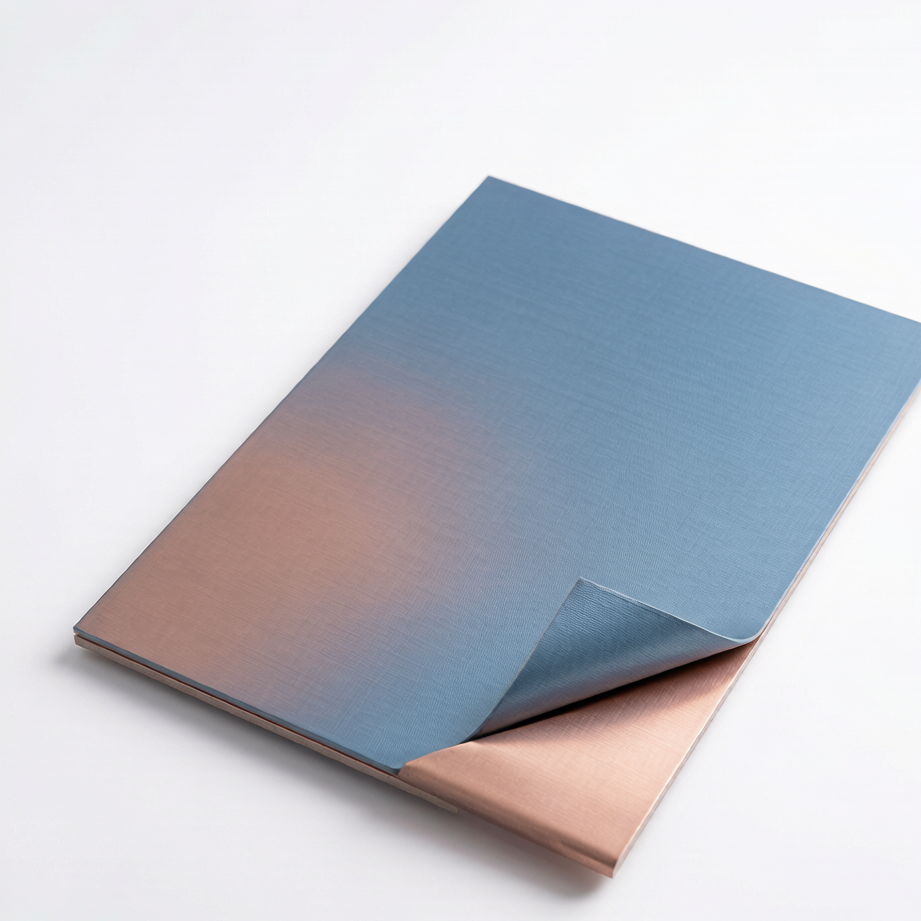

High TG CCL
As electronic products generate more heat and operate under increasingly demanding conditions, High TG Copper Clad Laminates continue to gain market share. These advanced materials are designed for applications requiring greater thermal stability and long-term reliability.
Manufacturers producing High TG laminates generally operate under tighter process control and stricter quality standards to achieve consistent material performance.
1
Production Characteristics
- Higher thermal resistance
- Improved dimensional stability
- Stable performance during repeated thermal cycles
- Enhanced multilayer manufacturing capability
- Excellent long-term reliability
2
Industry Requirements
As technology advances, CCL manufacturers face increasingly demanding production requirements. Beyond improving production efficiency, manufacturers must deliver laminates with consistent electrical and mechanical performance while maintaining stable quality across every production batch.
Key Manufacturing Priorities
| Industry Requirement | Manufacturing Value |
|---|---|
| Material Consistency | Stable laminate quality across continuous production |
| Dimensional Stability | Supports downstream processing accuracy |
| Uniform Lamination | Consistent bonding throughout the panel |
| Thermal Stability | Reliable performance under repeated heating cycles |
| Surface Flatness | Improves handling and subsequent manufacturing processes |
| Thickness Consistency | Supports precision processing and quality control |
| Production Efficiency | Higher throughput with reduced process variation |
| Long-Term Reliability | Stable product performance throughout service life |
Future Development
The Copper Clad Laminate industry is evolving rapidly to support next-generation electronic technologies and increasingly sophisticated manufacturing requirements.
High-Speed & High-Frequency Materials
The expansion of 5G communication, cloud computing, and AI infrastructure is driving demand for laminates with lower dielectric loss and improved signal transmission performance.
Advanced Thermal Management
As electronic devices become more powerful, manufacturers require laminate materials capable of maintaining stability under higher operating temperatures.
Higher Reliability Standards
Industries such as automotive electronics, aerospace, and industrial automation require laminates that deliver long-term performance under demanding operating environments.
Sustainable Manufacturing
Manufacturers continue investing in energy-efficient production equipment, environmentally friendly materials, and optimized manufacturing processes to reduce environmental impact while improving production efficiency.
Intelligent Manufacturing
Automation, digital quality monitoring, and data-driven process optimization are becoming increasingly important for maintaining stable production quality and improving manufacturing consistency.
Recommended Press Plates
To support different CCL manufacturing requirements, ZORI provides press plates engineered for stable lamination performance, consistent heat transfer, and long service life.
| Recommended Product | Primary Advantage | Typical Application |
|---|---|---|
| CCL Press Plates | Stable pressure distribution | Standard FR4 production |
| High Flatness Press Plates | Excellent dimensional consistency | Multilayer CCL manufacturing |
| Mirror Finish Press Plates | Superior surface quality | Premium laminate production |
| High Precision Press Plates | Stable thermal performance | High TG and specialty CCL |
